Bend 45° galvanised 4" 150#
Bends

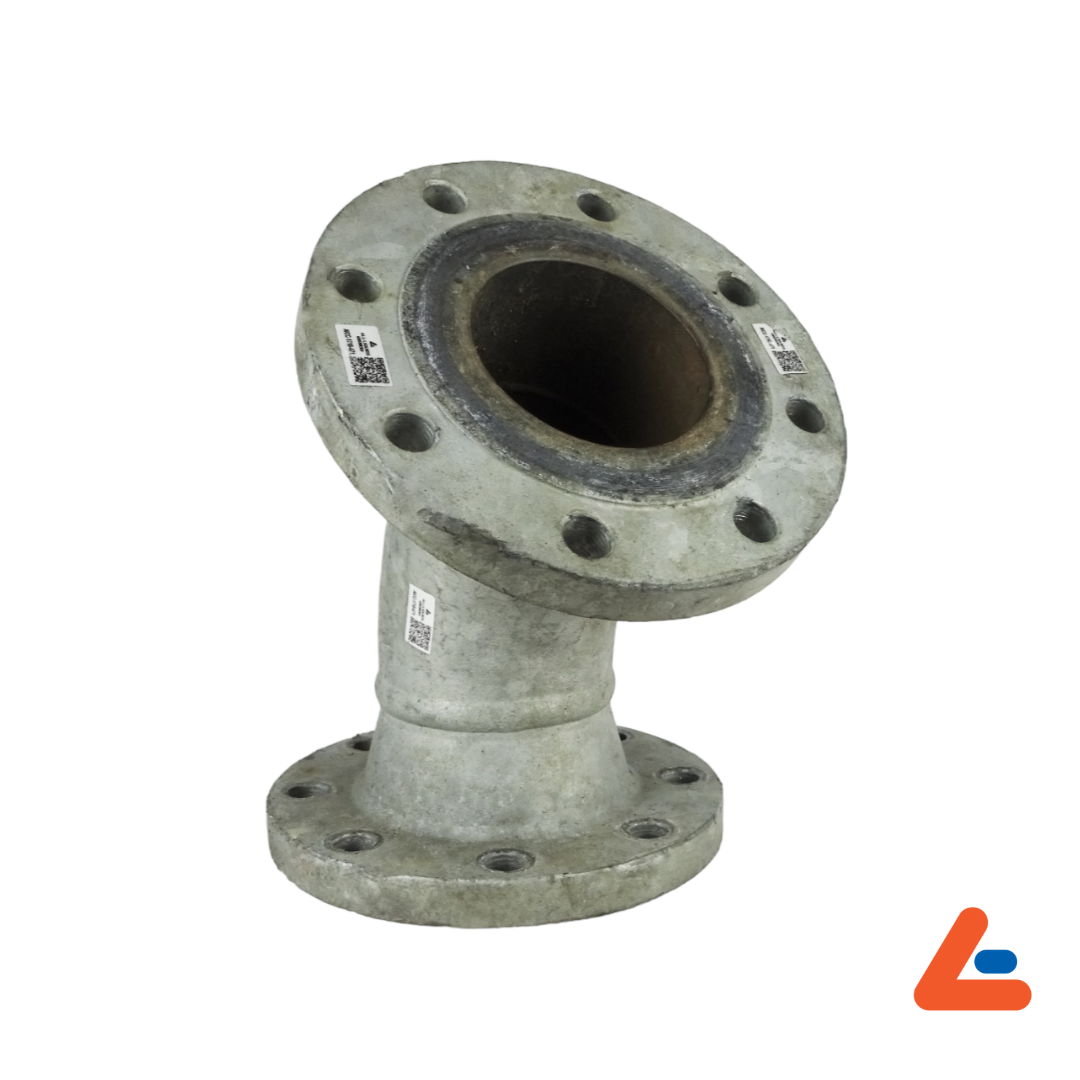

This galvanized 45 degree bend is made of 4" 150# and has eight bolt holes. More
Product information
This galvanized 45 degree bend is made of 4" 150# and has eight bolt holes.
Product details
General
Description
This galvanized 45 degree bend is made of 4" 150# and has eight bolt holes.
Material
Material
Verzinkt
Technical data
Diameter
4"
Weight
17,2 kg
Installation length
25 cm
Coupling 1
4" 150#
Coupling 1 diameter
4"
Coupling 1 pressure class
ANSI 150#
Coupling 2
4" 150#
Coupling 2 diameter
4"
Coupling 2 pressure class
ANSI 150#
Maximum operating pressure
19 bar
Assembly
Gelast
Temperature till
200 °C
Temperature from
-30 °C
Model
Manufacturer (origin material)
West-Europa
