Blind flange steel 4” 150# BSP in center

Blind flanges

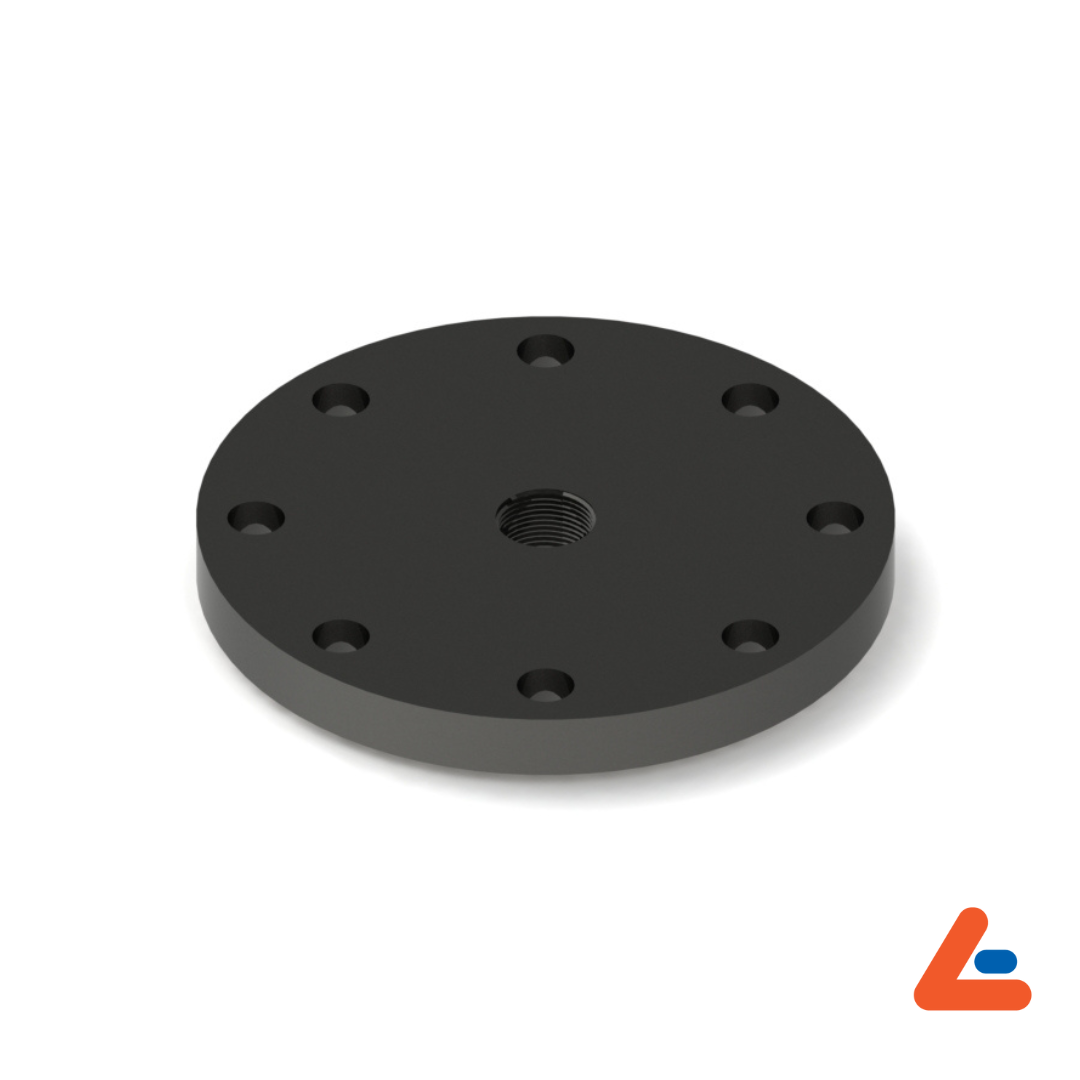

This steel blind flange is made of 4" 150# and has eight bolt holes and an internal thread in the middle. More

Is this what you are looking for?
Contact us to find out more!

Product information

This steel blind flange is made of 4" 150# and has eight bolt holes and an internal thread in the middle.

Product details

General

Description

This steel blind flange is made of 4" 150# and has eight bolt holes and an internal thread in the middle.

Material

Staal

Technical data

Diameter

4"

Weight

3 kg

Installation length

2,3 cm

Coupling 1

4" 150#

Coupling 1 diameter

4"

Coupling 1 pressure class

ANSI 150#

Maximum operating pressure

19 bar

Temperature till

400 °C

Temperature from

-30 °C
