Bend 90° RVS DN150 PN10

Bends

This 90 degree stainless steel bend is made of DN150 PN10 and has eight bolt holes. More

Is this what you are looking for?
Contact us to find out more!

Product information

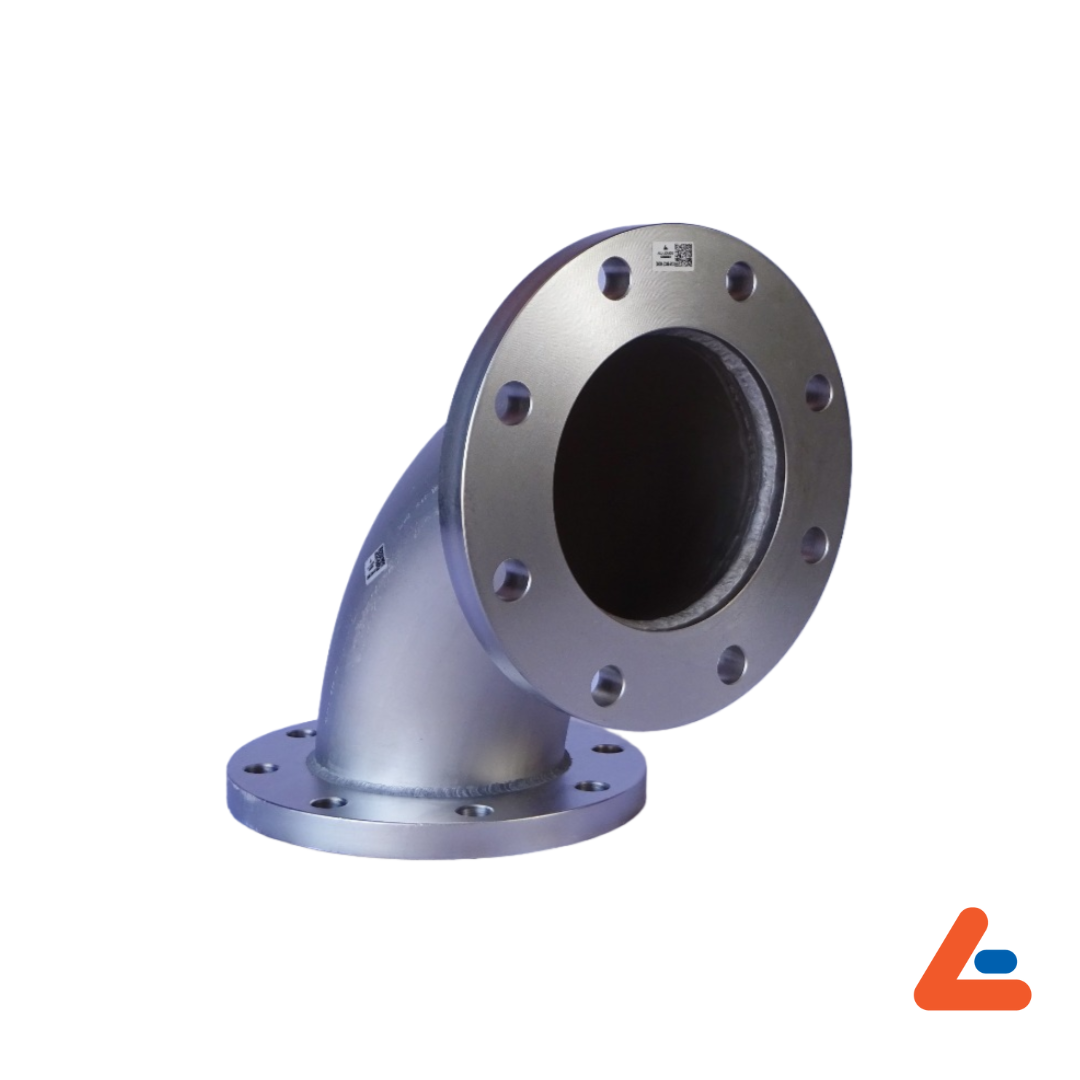

This 90 degree stainless steel bend is made of DN150 PN10 and has eight bolt holes.

Product details

General

Description

This 90 degree stainless steel bend is made of DN150 PN10 and has eight bolt holes.

Material

RVS 316

Technical data

Diameter

DN150

Installation length

37 cm

Weight

18 kg

Coupling 1

DN150 PN10

Coupling 1 diameter

DN150

Coupling 1 pressure class

DIN PN10

Coupling 2

DN150 PN10

Coupling 2 diameter

DN150

Coupling 2 pressure class

DIN PN10

Maximum operating pressure

10 bar

Assembly

Gelast

Temperature till

550 °C

Temperature from

-200 °C

Model

Manufacturer (origin material)

West-Europa
