Flange adapter galvanised DN250 PN16 > DN300 PN16

Flange and thread reducers

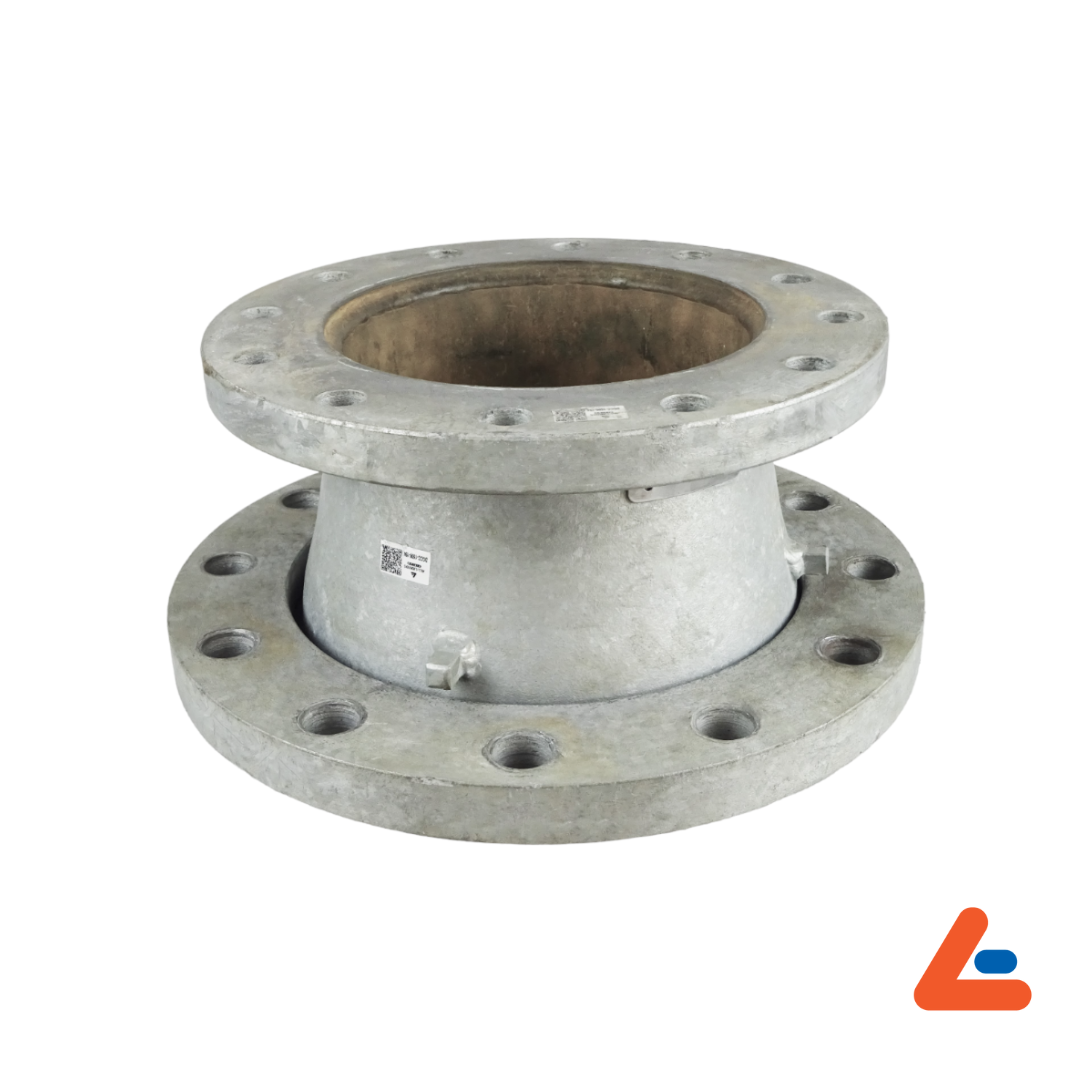

This galvanized flange reducer is made from DN250 PN16 (twelve bolt holes) to DN300 PN16 (twelve bolt holes). More

Is this what you are looking for?
Contact us to find out more!

Product information Product details

Product information

This galvanized flange reducer is made from DN250 PN16 (twelve bolt holes) to DN300 PN16 (twelve bolt holes).

Product details

General

Description

This galvanized flange reducer is made from DN250 PN16 (twelve bolt holes) to DN300 PN16 (twelve bolt holes).

Material

Verzinkt

Technical data

Weight

55,3 kg

Installation length

24 cm

Coupling 1

DN250 PN16

Coupling 1 diameter

DN250

Coupling 1 pressure class

DIN PN16

Coupling 2

DN300 PN16

Coupling 2 diameter

DN300

Coupling 2 pressure class

DIN PN16

Maximum operating pressure

16 bar

Assembly

Gelast

Temperature till

200 °C

Temperature from

-30 °C

Model

Manufacturer (origin material)

West-Europa
