Flange adapter RVS DN32 PN10/16 > DN50 PN10/16

Flange and thread reducers

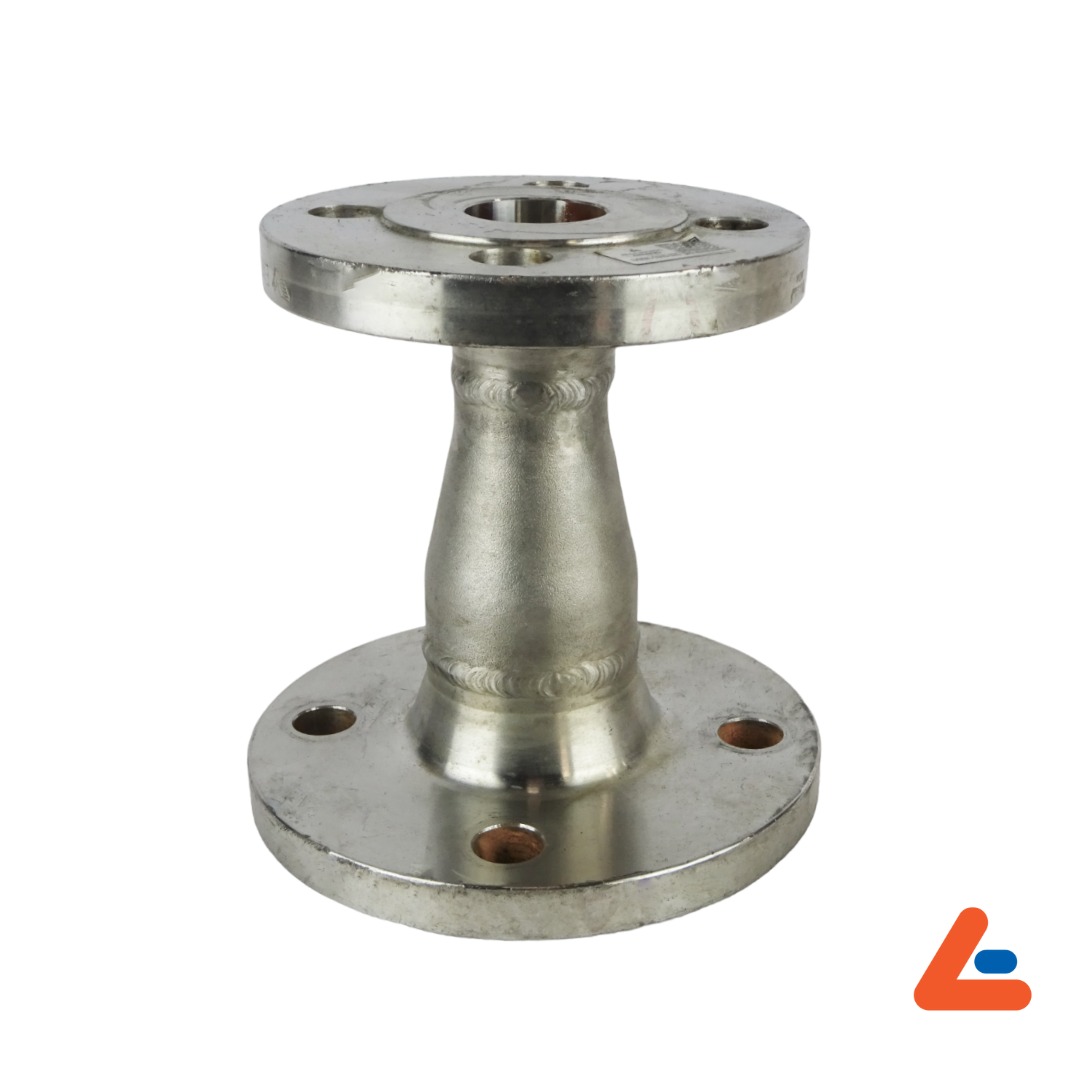

This stainless steel flange reducer is made from DN32 PN10/16 (four bolt holes) to DN50 PN10/16 (four bolt holes). More

Is this what you are looking for?
Contact us to find out more!

Product information Product details

Product information

This stainless steel flange reducer is made from DN32 PN10/16 (four bolt holes) to DN50 PN10/16 (four bolt holes).

Product details

General

Description

This stainless steel flange reducer is made from DN32 PN10/16 (four bolt holes) to DN50 PN10/16 (four bolt holes).

Material

RVS

Technical data

Weight

4,9 kg

Installation length

17 cm

Coupling 1

DN32 PN10/16

Coupling 1 diameter

DN32

Coupling 1 pressure class

DIN PN10/16

Coupling 2

DN50 PN10/16

Coupling 2 diameter

DN50

Coupling 2 pressure class

DIN PN10/16

Maximum operating pressure

16 bar

Assembly

Gelast

Temperature till

550 °C

Temperature from

-200 °C

Model

Manufacturer (origin material)

West-Europa

Flange adapter RVS 2" 150# > DN50 PN10/16

Flange adapter RVS 3" 150# > DN80 PN10/16

Flange adapter RVS 3/4" 150# > 1" 150#

Flange adapter RVS 4" 150# > 4" 300#
