Flange adapter RVS DN80 PN10/16 > DN125 PN10/16

Flange and thread reducers

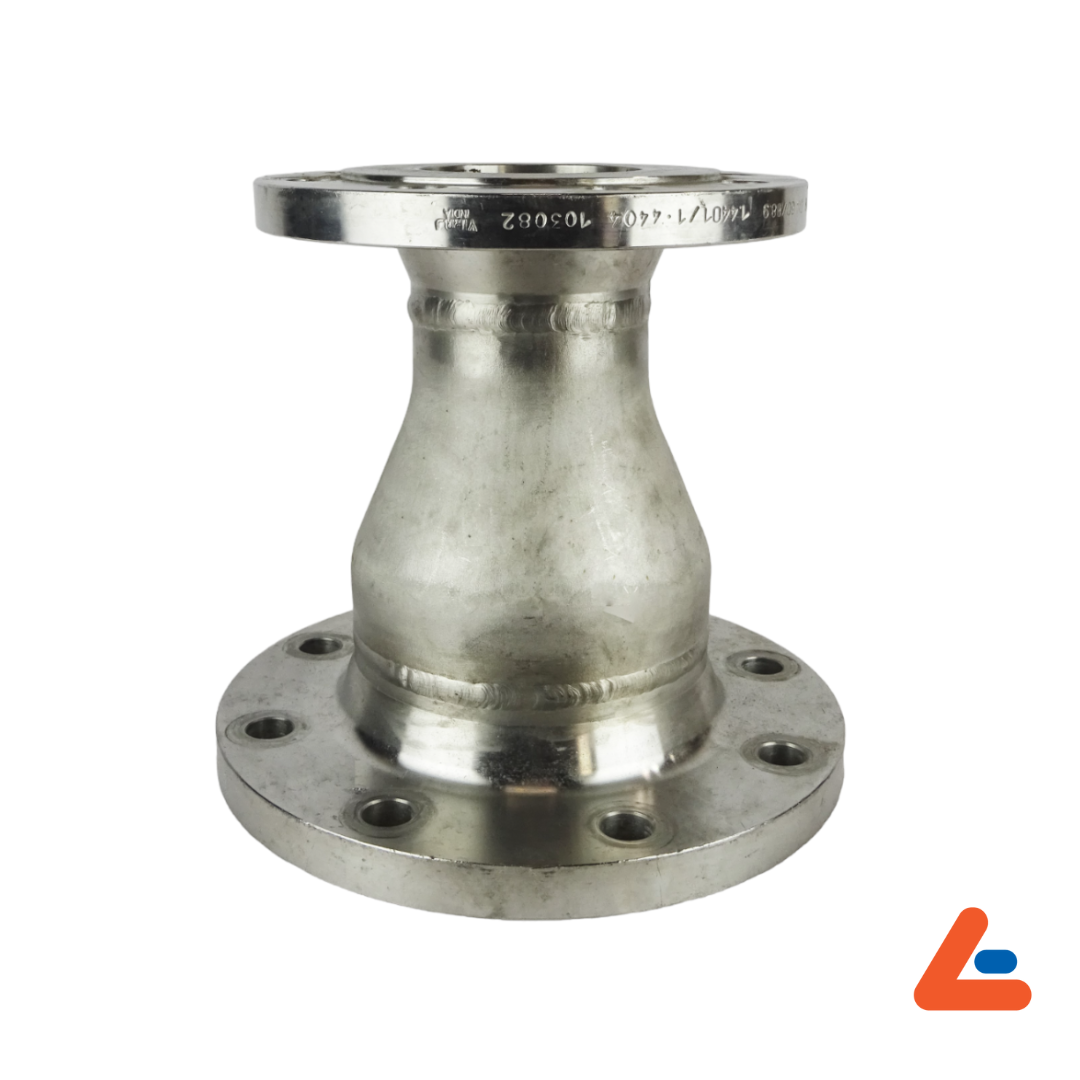

This stainless steel flange reducer is made from DN80 PN10/16 (eight bolt holes) to DN125 PN10/16 (eight bolt holes). More

Is this what you are looking for?
Contact us to find out more!

Product information Product details

Product information

This stainless steel flange reducer is made from DN80 PN10/16 (eight bolt holes) to DN125 PN10/16 (eight bolt holes).

Product details

General

Description

This stainless steel flange reducer is made from DN80 PN10/16 (eight bolt holes) to DN125 PN10/16 (eight bolt holes).

Material

RVS

Technical data

Weight

11,7 kg

Installation length

22,5 cm

Coupling 1

DN80 PN10/16

Coupling 1 diameter

DN80

Coupling 1 pressure class

DIN PN10/16

Coupling 2

DN125 PN10/16

Coupling 2 diameter

DN125

Coupling 2 pressure class

DIN PN10/16

Maximum operating pressure

16 bar

Assembly

Gelast

Temperature till

550 °C

Temperature from

-200 °C

Model

Manufacturer (origin material)

West-Europa
