Flange adapter steel 6" 150# > 6" 300#
Flange and thread reducers

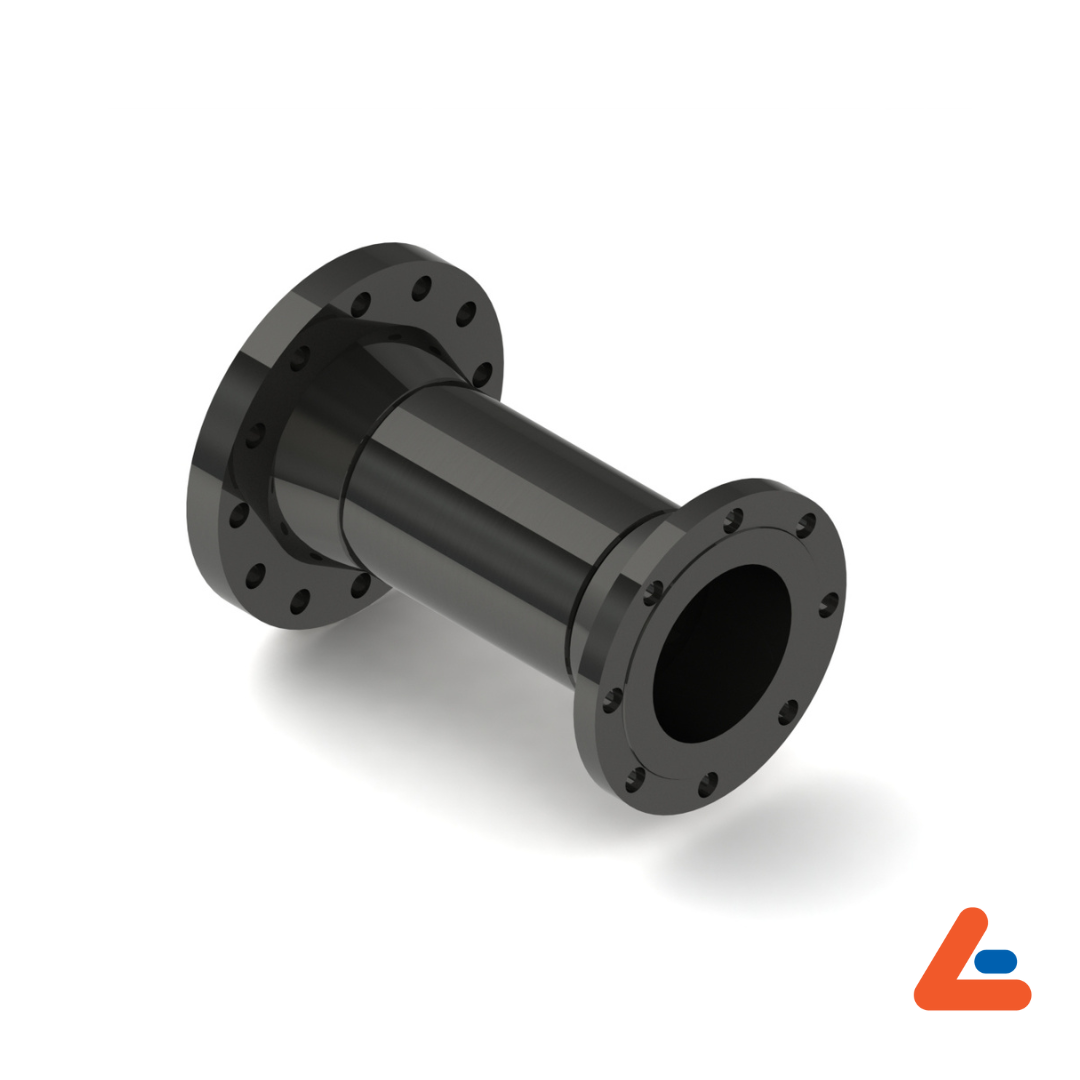

This steel flange reducer is made from 6" 150# (eight bolt holes) to 6" 300# (twelve bolt holes). More
Product information
This steel flange reducer is made from 6" 150# (eight bolt holes) to 6" 300# (twelve bolt holes).
Product details
General
Description
This steel flange reducer is made from 6" 150# (eight bolt holes) to 6" 300# (twelve bolt holes).
Material
Material
Staal
Technical data
Weight
33,5 kg
Installation length
30 cm
Coupling 1
6" 150#
Coupling 1 diameter
6"
Coupling 1 pressure class
ANSI 150#
Coupling 2
6" 300#
Coupling 2 diameter
6"
Coupling 2 pressure class
ANSI 300#
Maximum operating pressure
19 bar
Assembly
Gelast
Temperature till
400 °C
Temperature from
-30 °C
Model
Manufacturer (origin material)
West-Europa
