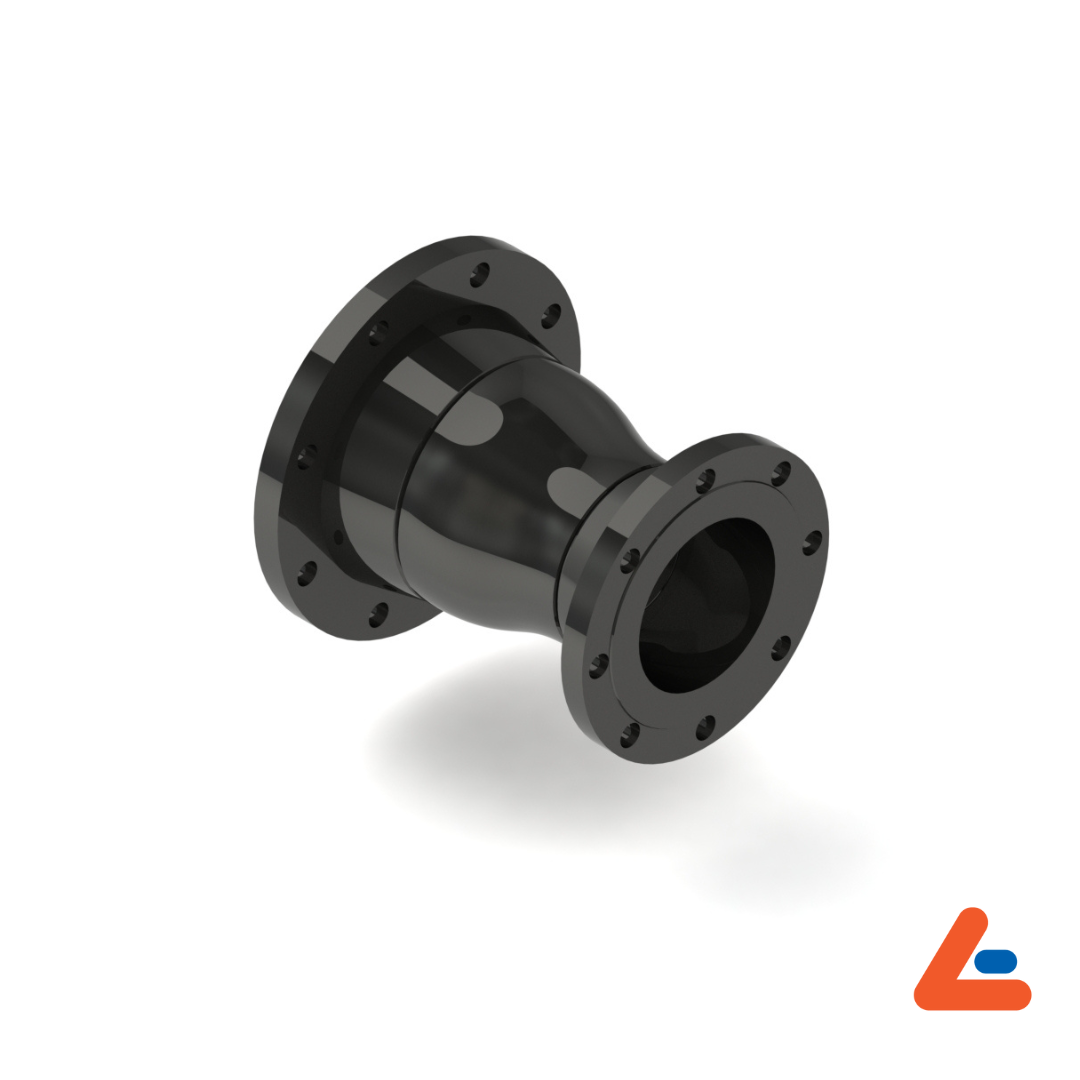

Flange adapter steel 6" 150# > 8" 150#

Flange and thread reducers

This steel flange reducer is made from 6" 150# (eight bolt holes) to 8" 150# (eight bolt holes). More

Is this what you are looking for?
Contact us to find out more!

Product information Product details

Product information

This steel flange reducer is made from 6" 150# (eight bolt holes) to 8" 150# (eight bolt holes).

Product details

General

Description

This steel flange reducer is made from 6" 150# (eight bolt holes) to 8" 150# (eight bolt holes).

Material

Staal

Technical data

Weight

37,1 kg

Installation length

35 cm

Coupling 1

6" 150#

Coupling 1 diameter

6"

Coupling 1 pressure class

ANSI 150#

Coupling 2

8" 150#

Coupling 2 diameter

8"

Coupling 2 pressure class

ANSI 150#

Maximum operating pressure

19 bar

Assembly

Gelast

Temperature till

400 °C

Temperature from

-30 °C

Model

Manufacturer (origin material)

West-Europa
