Flange adapter steel DN200 PN10 > DN250 PN10
Flange and thread reducers

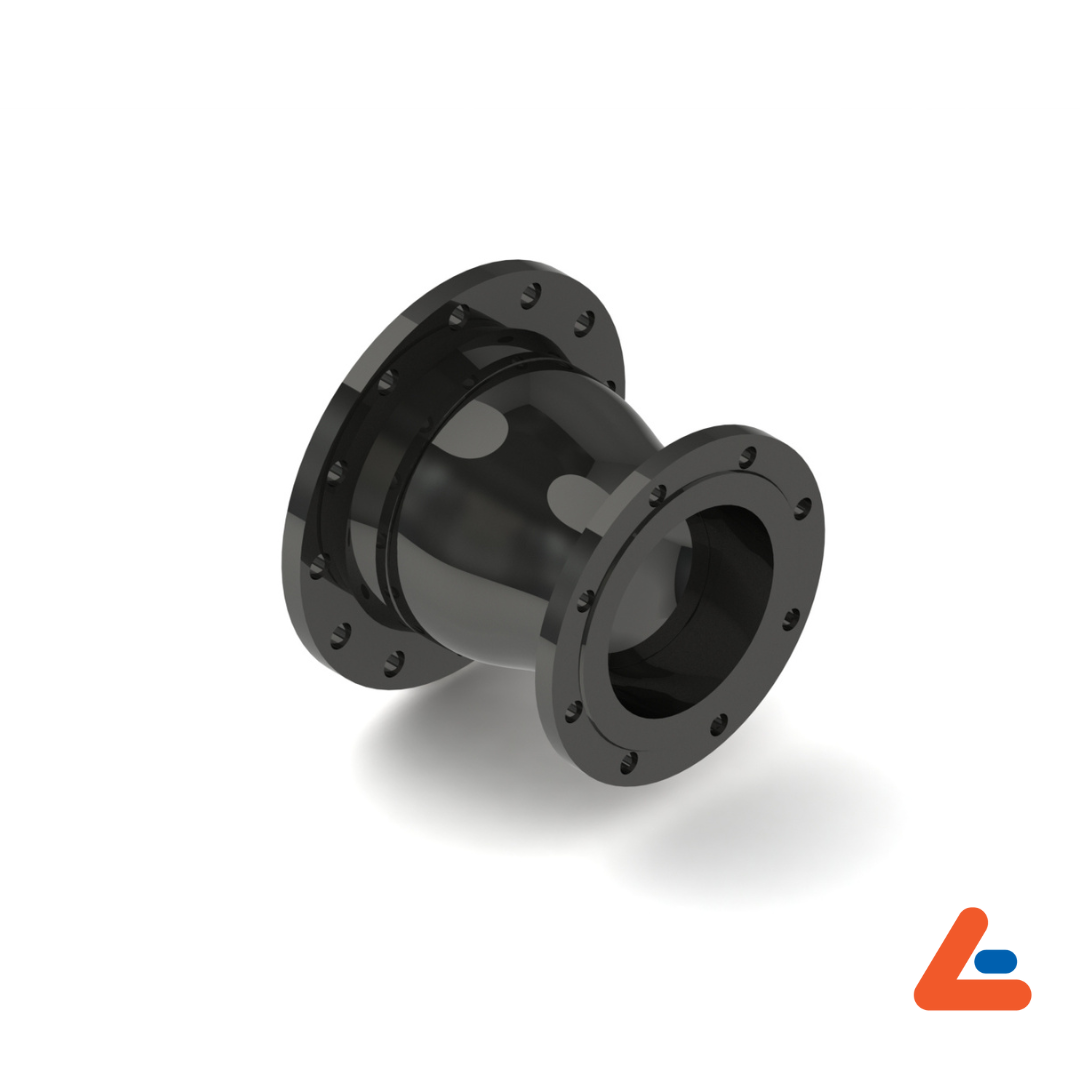

This steel flange reducer is made from DN200 PN10 (eight bolt holes) to DN250 PN10 (twelve bolt holes). More
Product information
This steel flange reducer is made from DN200 PN10 (eight bolt holes) to DN250 PN10 (twelve bolt holes).
Product details
General
Description
This steel flange reducer is made from DN200 PN10 (eight bolt holes) to DN250 PN10 (twelve bolt holes).
Material
Material
Staal
Technical data
Weight
34,5 kg
Installation length
31 cm
Coupling 1
DN200 PN10
Coupling 1 diameter
DN200
Coupling 1 pressure class
DIN PN10
Coupling 2
DN250 PN10
Coupling 2 diameter
DN250
Coupling 2 pressure class
DIN PN10
Maximum operating pressure
10 bar
Assembly
Gelast
Temperature till
400 °C
Temperature from
-30 °C
Model
Manufacturer (origin material)
West-Europa
