Flange adapter RVS 1" 300# > 2" 600#

Flange and thread reducers

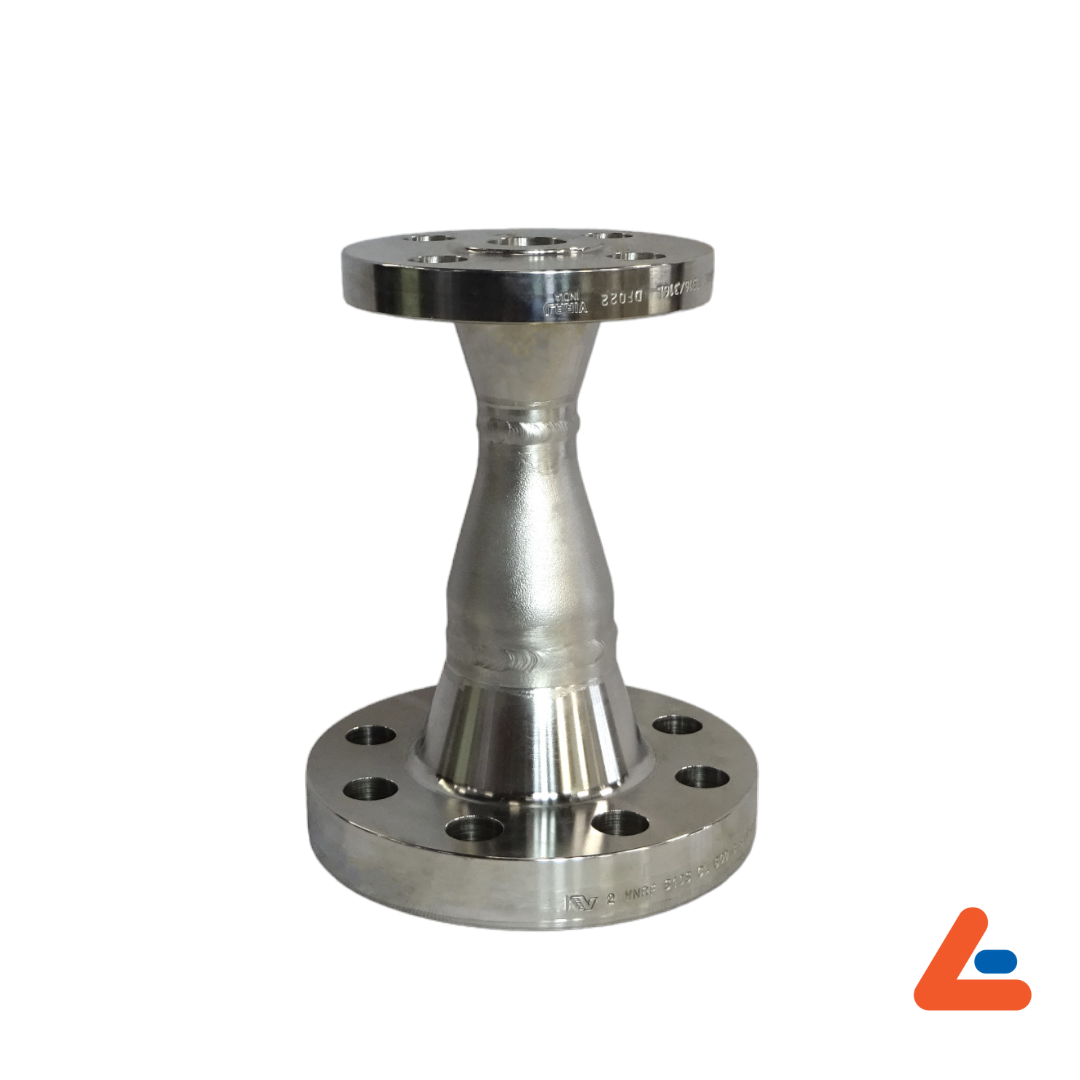

This stainless steel flange reducer is available in 1" 300# (four bolt holes) to 2" 600# (eight bolt holes). More

Is this what you are looking for?
Contact us to find out more!

Product information

This stainless steel flange reducer is available in 1" 300# (four bolt holes) to 2" 600# (eight bolt holes).

Product details

General

Description

This stainless steel flange reducer is available in 1" 300# (four bolt holes) to 2" 600# (eight bolt holes).

Material

RVS 316

Technical data

Installation length

21 cm

Temperature till

550 °C

Coupling 1

1" 300#

Temperature from

-200 °C

Coupling 1 diameter

1"

Coupling 1 pressure class

ANSI 300#

Coupling 2

2" 600#

Coupling 2 diameter

2”

Coupling 2 pressure class

ANSI 600#

Maximum operating pressure

32 bar

Assembly

Gelast

Model

Manufacturer (origin material)

West-Europa
