Flange adapter RVS 6" 300# > DN100 PN1016

Flange and thread reducers

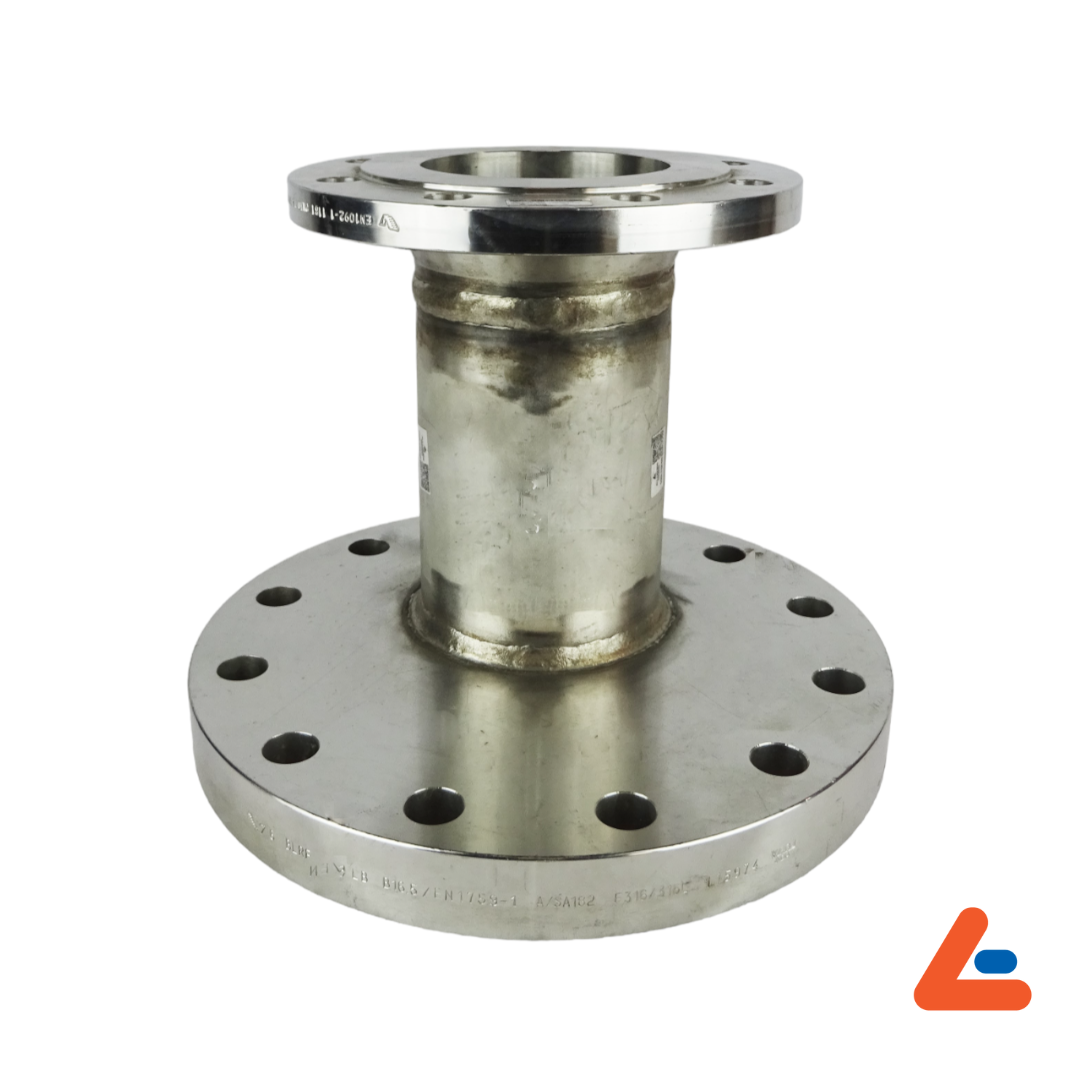

This stainless steel flange reducer is made from 6” 300# (twelve bolt holes) to DN100 PN10/16 (eight bolt holes). More

Is this what you are looking for?
Contact us to find out more!

Product information

This stainless steel flange reducer is made from 6” 300# (twelve bolt holes) to DN100 PN10/16 (eight bolt holes).

Product details

General

Description

This stainless steel flange reducer is made from 6” 300# (twelve bolt holes) to DN100 PN10/16 (eight bolt holes).

Material

RVS 316

Technical data

Weight

25 kg

Installation length

25 cm

Coupling 1

6" 300#

Coupling 1 diameter

6"

Coupling 1 pressure class

ANSI 300#

Coupling 2

DN100 PN10/16

Coupling 2 diameter

DN100

Coupling 2 pressure class

DIN PN10/16

Maximum operating pressure

16 bar

Assembly

Gelast

Temperature till

550 °C

Temperature from

-200 °C

Model

Manufacturer (origin material)

West-Europa
