Gauge RVS 2" 150# - measurement points 2x 1/2" NPT - 0,5m

Gauges

Stainless steel measuring piece in 2" 150# 0.5 meters with two measuring points 1/2" NPT. More

Is this what you are looking for?
Contact us to find out more!

Product information

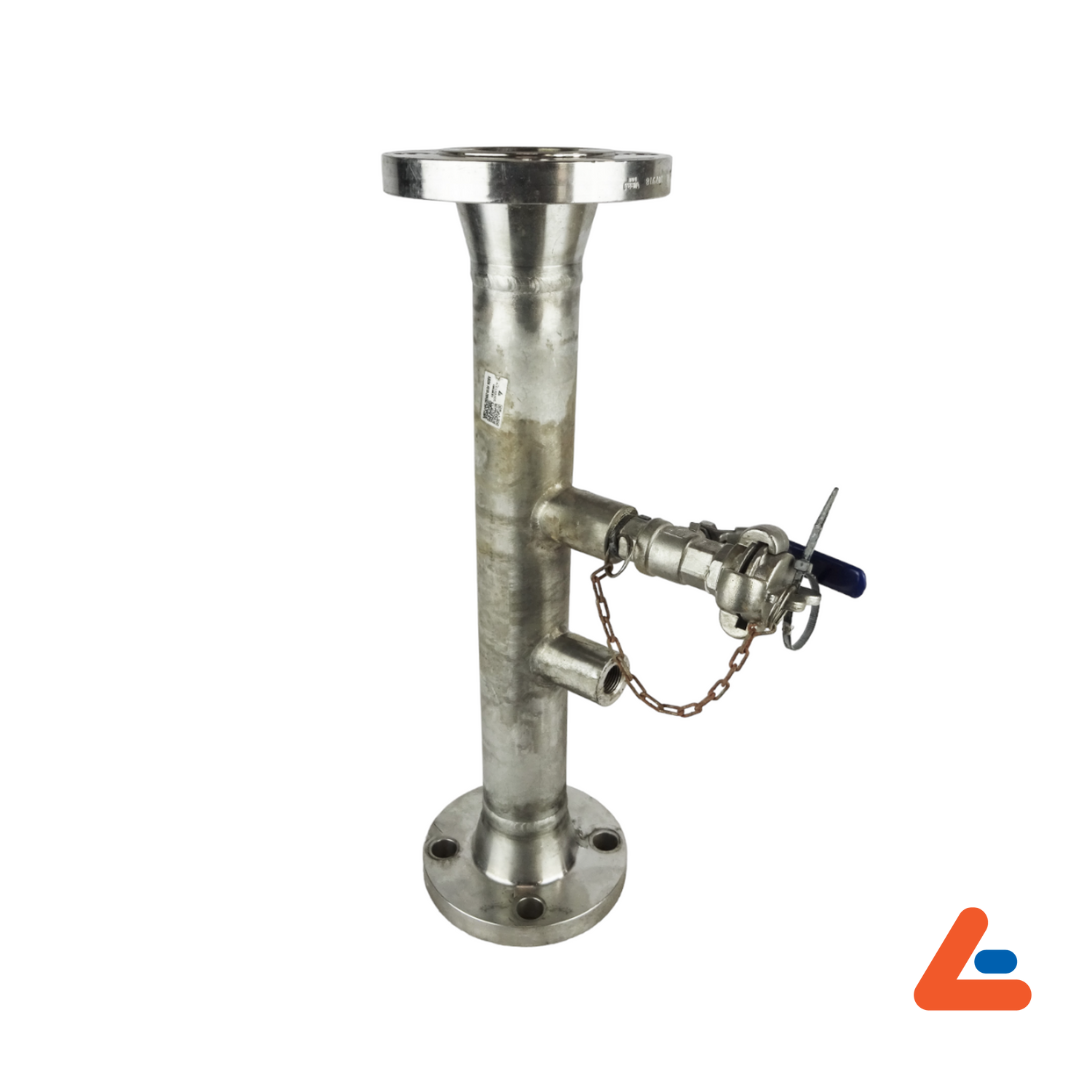

Stainless steel measuring piece in 2" 150# 0.5 meters with two measuring points 1/2" NPT.

Product details

General

Description

Stainless steel measuring piece in 2" 150# 0.5 meters with two measuring points 1/2" NPT.

Material

RVS 316

Technical data

Diameter

2”

Installation length

50 cm

Coupling 1

2" 150#

Coupling 1 diameter

2”

Coupling 1 pressure class

ANSI 150#

Coupling 2

2" 150#

Coupling 2 diameter

2”

Coupling 2 pressure class

ANSI 150#

Maximum operating pressure

19 bar

Assembly

Gelast

Temperature till

550 °C

Temperature from

-200 °C
